• 2CH – FHD 1920×1080@30fps + FHD 1920×1080@30fps

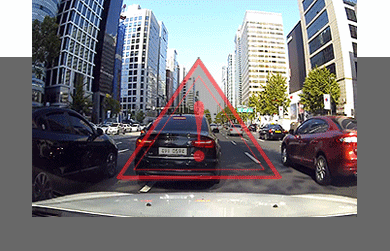

• ADAS – LDWS(Lane departure warning system) , FCWS(Forward collusion warning system) , FVDW(Front Vehicle Departure Warning)
• 142 degrees wide viewing angle
• Built-in voltage control(uninterrupted power) : prevent battery discharge
• Wi-Fi function
• Format Free (Auto recovery system)
• The minimum electricity consumption (2.6W / 2CH basis)

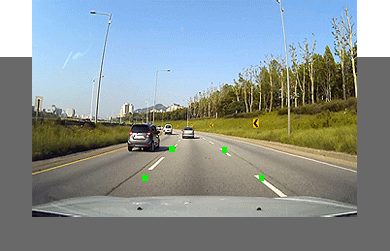

Advanced Driver Assistance Systems

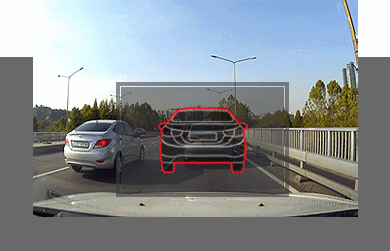

Front Vehicle Departure Warning is for generating an warning upon start of a vehicle in front of the subject vehicle guring stop and waiting for a signal. intelligent smart system for driver’s convenience
IROAD NIGHT VISION
Videos recorded by a dash cam in a low light environment such as dark alleyway or underground parking lot can pose difficulties when you try to accurately identify information from the image.
IROAD NIGHT VISION employs the new ISP (Image Signal Processing) technology and the real-time image processing function to brighter images than our earlier models when recorded under nighttime parking mode.

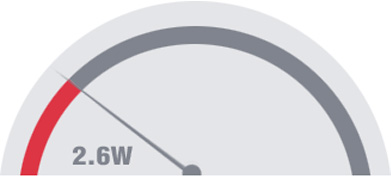

The minimum electricity consumption

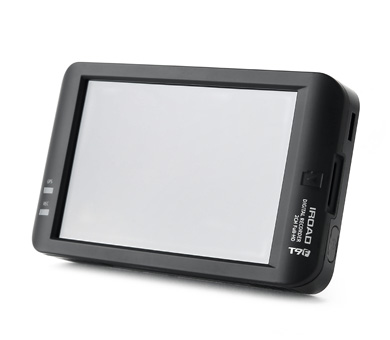

IPS LCD panel
3.5 IPS WIDE VIEWING ANGLE FULL TOUCH LCD
Top of the line wide viewing angle LCD panel embedded in IROAD T9F is shown off the lesser afterimages all the directions in keeping clearness.

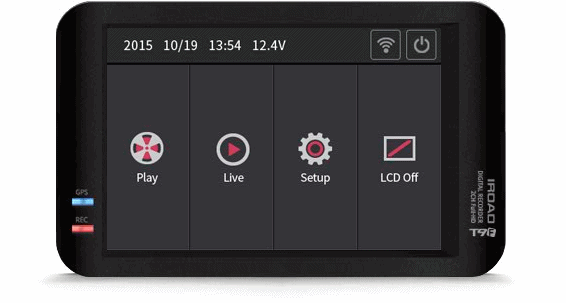

All the major information such as car status, record mode, settings can be checked and modified via LCS screen which is consist of the convenient and simple GUI.

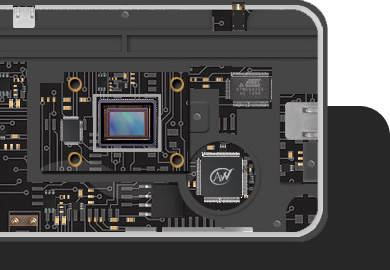

Powerful Hardware, Stable high FHD quality
Dual 30FRS Beautiful Record
IROAD T9F provides front/rear 30 frames each that seamless recording helps to recognize surroundings such as number plate of front vehicle precisely
IROAD T9F adopted format free technology and manipulation prevention technology
JDR format free recording way that records every second not as usual as 30sec or 1min can be defragmented to minimize possibility of fragmentations. No necessarily need to format and it brings increase of lifespan of SD card.
Stable, all new concept file format
JDR format, the next generation format system after AVI and MP4 format, is applied to improve the security of saved data.
Recordings are automatically saved in a main memory unit and it is much safer than previously used format
JDR format does not require deleting the whole files in a memory card regularly, whereas other existing in-car cameras do require it.
Automatic rebooting function which IROAD T10 provides guarantees the safety of the device and its saved dataspan>
Supports large capacity memory of up to 64GB
So that genuine IROAD memory cards can always record High Definition video, rear Full-HD 30-frame, strictly tested to ensure best speed and image storage stability.
Applying the format and recording systems in order to support large memory of up to 64GB, you can store plenty of high quality images for a longer time.
Please use our genuine memory card.
As a reference (recording time in 100% driving mode)
- 16GB : Approx. 2hr
- 32GB : Approx. 4hr
- 64GB : Approx. 8hr
- 128GB : Approx. 16hr

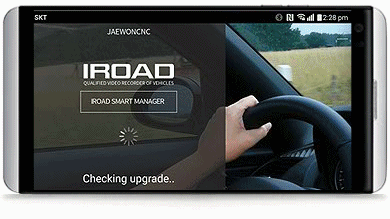

Easy to Wi-Fi Wireless

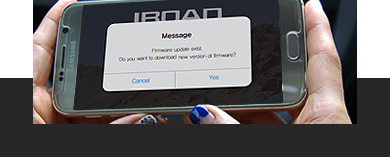

Wi-Fi is automatically connected after running IROAD application and regularly check whether it is updated with the latest version.
The most convenient Wi-Fi function which IROAD has to offer, patent obtained.
Wi-Fi function for other existing in-car cameras is rather give users a real hassle and is hard to connect.
IROAD App provides automatic connection/disconnection function
(i.e. Wi-Fi is automatically connected after running IROAD mobile application, disconnected after exiting the application.)
IROAD SMARTPHONE APPLICATION
SEARCH ‘IROAD’ ON GOOGLE PLAYSTORE & APP STORE

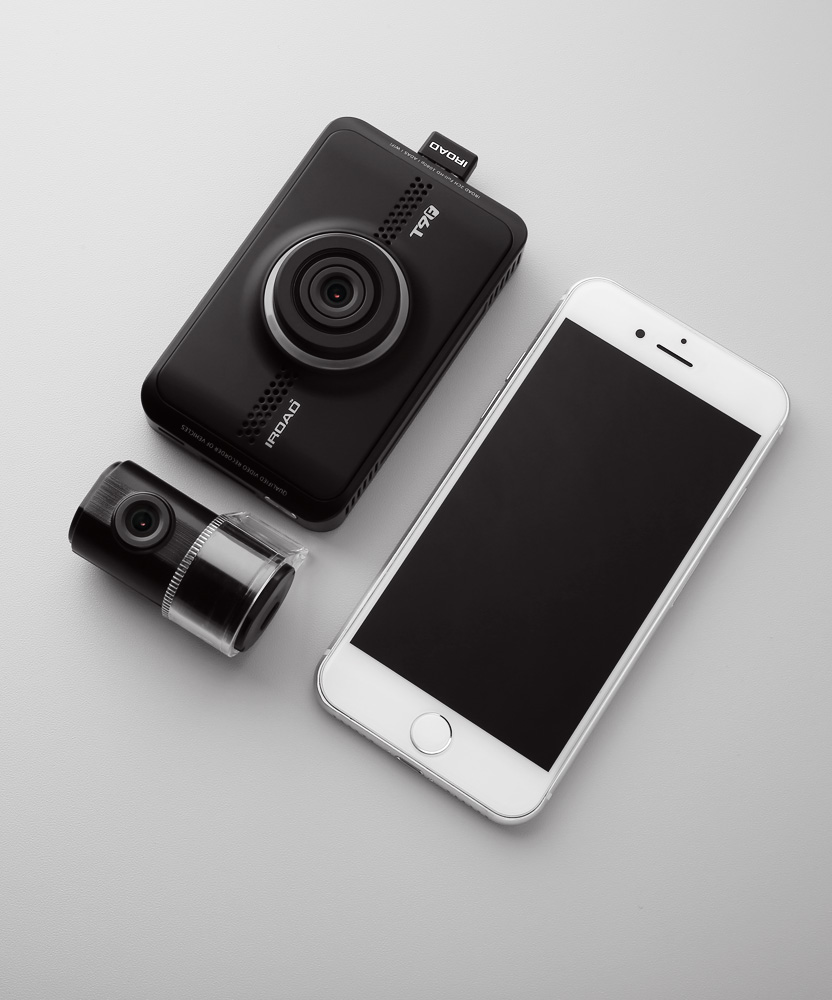

Upgraded Design, IROAD T9
Various recording modes
Normal (driving) recording
When the car engine is started, the device is automatically turned on and starts recording on driving mode.
The circumstances surrounding the front and rear license plates of vehicles may not accurately record the picture quality of Full HD.
24 Hour recording while Parking

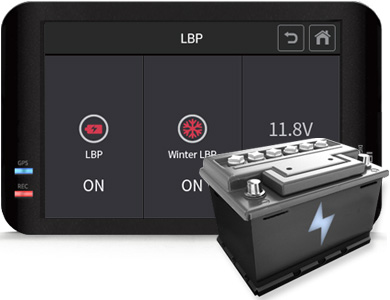

Battery discharge prevention function

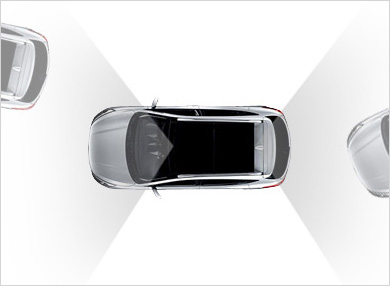

A Wide viewing angle

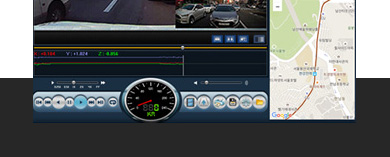

Dedicated PC Viewer
Front and Rear images playback (PIP/picture in picture function)
Image zoom in
Night recording calibration and Drawing a traffic lane
Converting recording files (Converting file format)
Various system configuration
Able to control when to stop the recording,
automatic rebooting function
When you set a certain time for rebooting, video recording will be stopped for the time being and the camera will be rebooted.
Automatically checks the memory card error during reboot time and organize data storage.
Can be set via the IROAD application and the PC viewer.

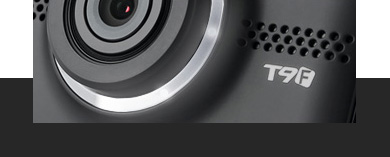

All glass lens
Strong temperature durable
The lens of the camera used is covered with all glass and they endure low and high temperature and are not affected by them.
Optimal image is realized by ALL glass covered lens which endures both low and high temperature, instead of glass plus plastic combined one.
IROAD T9 is highly durable enough to endure high and low temperature in order to keep the device running stably.

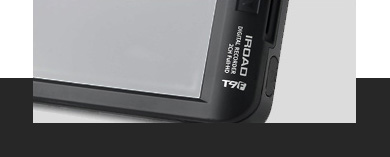

Power on/off button
Switching on and off IROAD T9F is easy to use by power buttons when not using

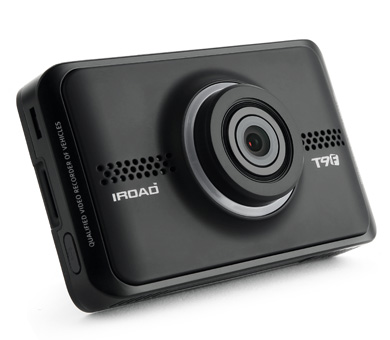

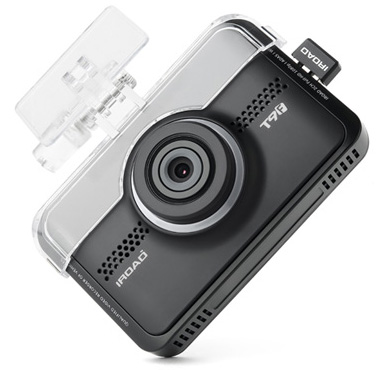

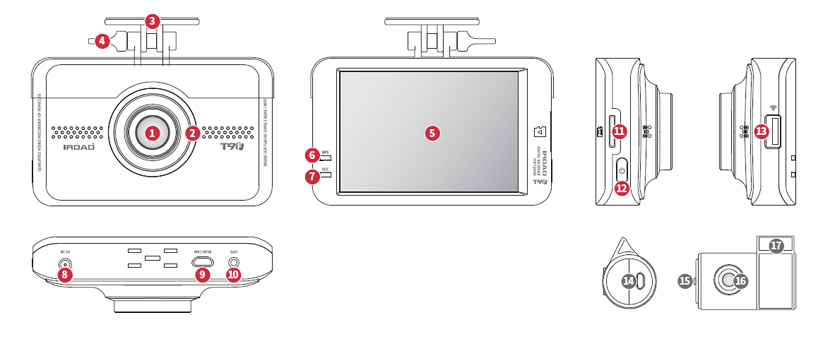

About the device
1 – Lens/Front
2 – Security LED
3 – Transparent Cradle
4 – Cradle Screws
5 – 3.5inch Touch LCD
|Resolution/Frame/Degrees||2CH – Front : Full HD 1920*1080p@30Frame, Rear : Full HD 1920*1080p@30Frame / 142 degrees|
|CPU||ARM Cortex-A7 Quad-Core Processor V40|
|LCD||IPS touch panel (480×320 decompression way)|
|Wi-Fi||Wi-Fi supported – Dongle Type : Smartphone playback and settings, firmware auto-update|
|ADAS||LDWS(Lane departure warning system), FCWS(Forward collusion warning system), FVDW(Front Vehicle Departure Warning)|
|Constant power(low voltage cut-off)||Cut-off and booting voltage settings(Constant power)|
|Audio||Speaker (effect sound for informing operational status and 34 kinds of voice guidance voice guidance supported), Microphone embedded|
|Video||H.264 / ADPCM|
|G Sensor||Acceleration 3-axis Sensor (Recorded by an external impact)|
|GPS||External GPS Antenna ((In conjunction with Google Maps to check the location and speed)|
|Storage medium||Micro SD 4GB ~ 128GB (recommended type MLC Class10)|
|Recording modes||Normal(driving)mode, Event(impact)mode, Parking(Motion Detection) mode, Voice recording|
|Temperature/Humidity||-30~-80, Storage Temperature : -30~-90, Humidity : 10~95%|
|PC viewer||IROAD WIFI Dedicated Viewer|
|Application||IROAD App (Android 2.3 higher version, iOS 5.0 higher version)|
What’s in the BOX
Micro SD 32/64GB
