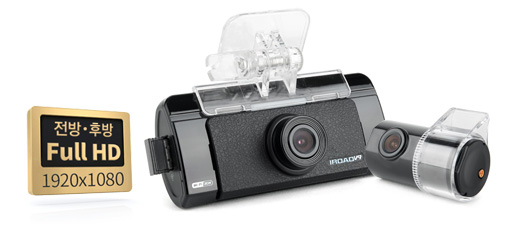

IROAD DASH CAM V9

(Season2 , ver.2016)

Update ADAS & NIGHT VISION

Rear camera Full HD 30-frame, ensuring the highest quality of Full HD

Front/Rear Sony Exmor Image Sensor

The minimum electricity consumption-2.3W

Wi-Fi connection with smartphone

  • 2CH-Front:Full HD(1920x1080p) 30FRAME, Rear:Full HD(1920x1080p) 30FRAME
  • Front/Rear Sony Exmor Image Sensor (2.4M pixels)
  • Dual Core A7-V3 CPU embedded – stable 2CH recording and anti-high temperature recording
  • 142 degrees wide viewing angle
  • ADAS – LDWS(Lane departure warning system) , FCWS(Forward collusion warning system) , FVDW(Front Vehicle Departure Warning)
  • Built-in voltage control(uninterrupted power) : prevent battery discharge
  • Wi-Fi function (Front/Rear view live screen, playback, settings, firmware automatic update, dedicated mobilephone app supported, Automatic switch between normal and parking mode, car attack alert)
  • Format Free (Auto recovery system), External GPS antenna
  • 34 kind of voice guidance and high quality voice recording

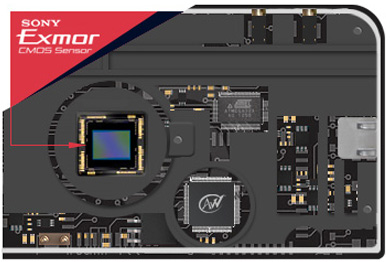

SONY Exmor CMOS Sensor
and image quality that ensures vivid color

2 channels Front/Rear, all applicable SONY Exmor image sensor

SONY Exmor image sensor applied to IROAD V9 has greatly improved the quality of the enhanced image and the night illumination has more vivid colors in Full HD images.

IROAD V9 uses SONY Exmor image sensor for the front and rear camera.
Can maintain excellent color in any situation to enhance the quality of the front and rear images.

Both front and rear Full HD 30 frame high definition video recording

Front 1920x1080p Full HD 30Frame

IROAD V9 offers a ultra-high definition Full HD video recording with a clear and detailed technique.

Sharp daytime images as well as excellent low light night images due to the built in SONY Exmor image sensor.

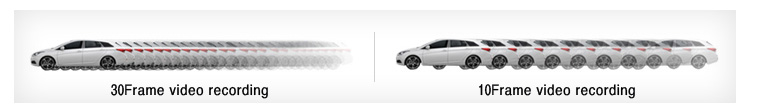

IROAD V9 both front and rear camera shows smooth recording as it is 30 frames per second, the license plate and the surroundings can be detected more easily at a higher speed.

Recording on driving mode, Front/Daytime, Full HD 1920x1080p 30fps

Recording on driving mode, Front/Night, Full HD 1920x1080p 30fps

Rear to sharpen a Full HD 30-frame

Rear 1920x1080p Full HD 30Frame

Full HD front as well as rear-view camera that boasts an overwhelming picture of the IROAD V9.
Rear camera with Full HD video quality of the video provides a vivid high definition that cannot be compared. With the built-in superior SONY EXMOR image sensor, it ensures excellent night time images.

Recording on driving mode, Rear/Daytime, Full HD 1920x1080p 30fps

Recording on driving mode, Rear/Night, Full HD 1920x1080p 30fps

Update ADAS

Advanced Driver Assistance Systems

The IROAD V9 Dash Cam is equipped with the Road Safety Warning System that provides audio and visual
alerts for Lane Departure (LDWS), Front Collision (FCWS) and Front Vehicle Departure (FVDW).
It detects road markings and gives voice warnings to the drivers if the vehicle begins to stray from its lane or when
it is at risk of an imminent crash.

Such advanced technology that once could only be seen in the best luxury sedans is now available in our dash cams
to provide convenience and safety while aiding drivers on the road

Current owners also will be able to use ADAS function through automatic firmware upgrade
(Please refer to our official website)

LDWS

(Lane departure warning system)

LDWS operates in a way that the front camera recognizes the road lane in real time and, if the driver falls asleep while driving or drives poorly, causing the car to depart the lane, it will notify about it through the preset warning sound.

FCWS

(Forward collusion warning system)

The FCWS function calculates the average distance from the vehicle in front and alerts the driver in advance when reaching the range of safe breaking distance in order to prevent a collision.

FVDW

(Front Vehicle Departure Warning)

Front Vehicle Departure Warning is for generating an warning upon start of a vehicle in front of the subject vehicle guring stop and waiting for a signal. intelligent smart system for driver’s convenience

ADAS function is available only while using IROAD genuine GPS antenna.
It’s also properly working in case of in good GPS condition and it’ll be able to have little range accuracy difference depending on surroundings.

Easy wireless Wi-Fi

Now, check the front and rear images directly from the smartphone

The most convenient Wi-Fi function which IROAD V9 has to offer, patent obtained.

Wi-Fi function of other existing in-car cameras give users a real hassle and is hard to connect. V9 provides automatic connection/disconnection function.(i.e. Wi-Fi is automatically connected after running IROAD mobile application, disconnected after exiting the application.)

IROAD SMARTPHONE APPLICATION

IROAD SMARTPHONE APPLICATION

SEARCH ‘IROAD’ ON GOOGLE PLAYSTORE & APP STORE

AUTOMATIC WI-FI CONNECTION
AUTOMATIC FIRMWARE UPDATE

Wi-Fi is automatically connected after running IROAD application and regularly check whether it is updated with the latest version.

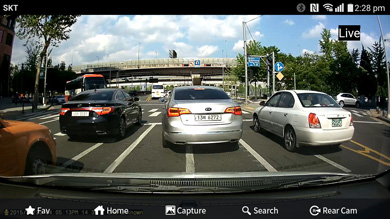

FRONT & REAR LIVE SCREEN

Users are able to watch front/rear live screen. Date, time, voltage and travelling speed and GPS info are all shown on the bottom of the screen.

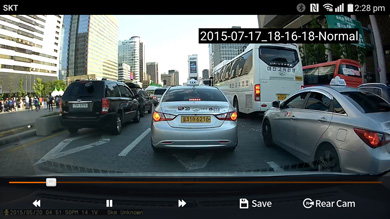

FRONT & REAR RECORDINGS
PLAYBACK AND SAVING

Front/Rear recordings can be played using smartphone. The recordings saved in the smartphone can be simply uploaded to Youtube, SNS and more.

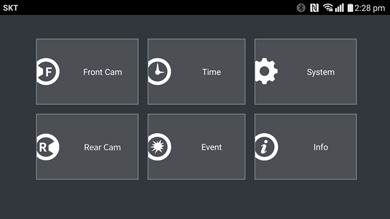

VARIOUS SETTINGS

On the settings in the mobile application, users can steer the following : ADAS, Resolution, frame, recording mode, sensor sensitivity, time and date, memory capacity allocation and voltage control(uninterrupted power/low voltage cut-off)

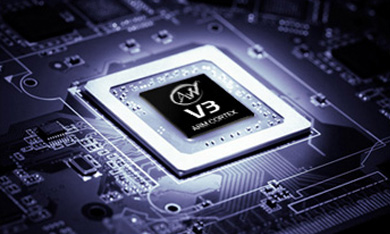

Powerful CPU and sensor for optimal Performance

Improved front and rear Full HD recording with reliability and performance with a powerful CPU

High-end quality hardware specs are essential to run high resolution, high frame recordings
Cortex-A7 V3 CPU embedded in IROAD V9 provides superb stability and optimal performance

Wi-Fi car camera to Increase
the quality of the car

More advanced design with leather pattern

IROAD V9 has a curvature design with simple, black high-glossy texture. There is also a leather-liked texture to achieve the overall glossy and matte look.

Using a leather-covered texture front panel has added luxury to the front camera.

You can safely use the memory card as we have designed a separate cover for the memory unit.

Easily removable, durable cradle is designed to be transparent and it will blend well with the interior of the vehicle.

In addition, three beautiful LED moving smoothly from the front will be one of the plus points to increase the quality of your car.

Full HD recording of the rear camera, it has a transparent cradle and you can rotate the rear camera 360 degrees  to any desired angle that you want.

In addition, in order to reduce the heating issues of the camera as much as possible,
we have created a hole at the bottom of the two different texture patterns to minimize heat generated issues.

Rear camera is designed to be attached to the glass as close as possible in order to minimize distortion.
Side of the camera has a Security LED facing the inside of the car so as to inform you if it is operating or not.

Format Free
Saved recordings auto recovery function

Stable footage managing system applied

Stable, all new concept file format

JDR format, the next generation format system after AVI and MP4 format, is applied to IROAD V9 to improve the security of saved data. Recordings are automatically saved in a main memory unit and it is much safer than previously used format.

JDR format does not require deleting the whole files in a memory card regularly, whereas other existing in-car cameras do require it. Automatic rebooting function which IROAD V9 provides guarantees the safety of the device and its saved data.

Saved recordings auto recovery function

Keep saved data safe with automatic recovery function

Damaged files or even mistakenly deleted files are automatically recovered once a SD memory card is reinserted onto the camera.
It is saved accordingly by using a block of data of a certain size, you can adjust the amount of data space allocation according to your own preference.

JDR format recordings can be played via PC dedicated viewer and smartphone.(unable to run on normal media players). JDR files can be converted into AVI format from the viewer and smartphone application

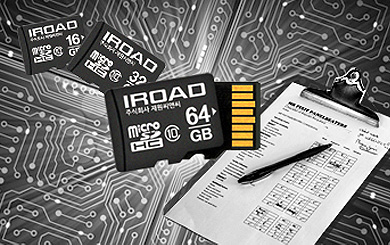

Large capacity easy expansion
Micro SD

Supports large capacity memory of up to 64GB

So that genuine IROAD memory cards can always record High Definition video, rear Full-HD 30-frame, strictly tested to ensure best speed and image storage stability.
Applying the format and recording systems in order to support large memory of up to 6GB, you can store plenty of high quality images for a longer time.

Please use our genuine memory card.

As a reference (recording time in 100% driving mode)

  • 16GB : Approx. 2hr
  • 32GB : Approx. 4hr
  • 64GB : Approx. 8hr
  • 128GB : Approx. 16hr

It usually takes 3 to 5 minutes depending on the capacity of memory card when the memory card is inserted into the front camera for the first time or after format for checking and data creation.

Recording time can be manipulated by changing recording resolution and frame.

The recording time may vary depending on the recording conditions and the surrounding environment.

Various recording modes
(Normal, event and parking)

Steady and stable recording methods

Normal (driving) recording

When the car engine is started, the device is automatically turned on and starts recording on driving mode.
The circumstances surrounding the front and rear license plates of vehicles may not accurately record the picture quality of Full HD.

Impact (Event) recording

During parking or driving, when a motion is detected within the vehicle, it will automatically start an event recording.

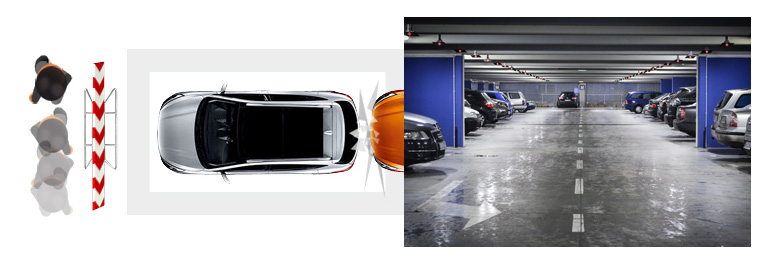

24 Hour recording while Parking (Motion detection)

Safe parking to support the recording mode to protect the vehicle, even when parked.

IROAD V9 uses an advanced parking mode, the engine starts up automatically once it is detected by the car (when using uninterrupted fuse cable). It can easily determine when entering parking mode in order to switch the recording modes more accurately.

Front and rear camera automatically detects movement before any motion. It will automatically record the motions and you can manage the recordings in the memory card storage.

After entering the parking mode, if some events happen, there will be voice guidance.

“An event occurred during parking.”

Parking video recording, Front, Rear / Full HD 1920x1080p 30fps

IROAD NIGHT VISION

Videos recorded by a dash cam in a low light environment such as dark alleyway or underground parking lot can pose difficulties when you try to accurately identify information from the image.

NIGHT VISION [ON]

NIGHT VISION [OFF]

IROAD NIGHT VISION employs the new ISP (Image Signal Processing) technology and the real-time image processing function to brighter images than our earlier models when recorded under nighttime parking mode.

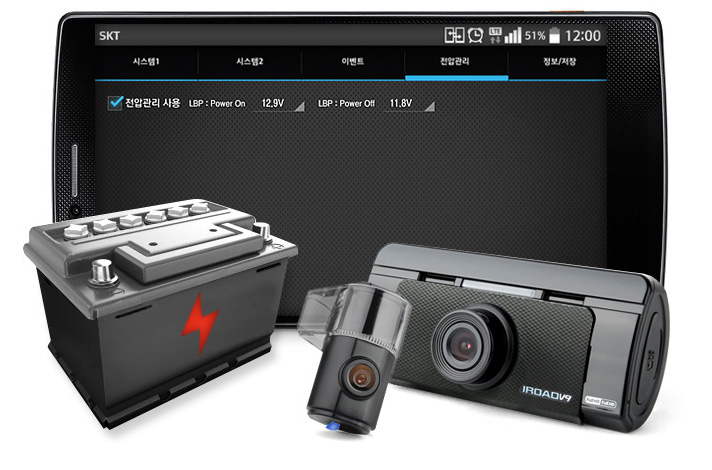

Battery discharge prevention function

Low voltage cut-off function(uninterrupted power) is embedded

For the purpose of battery protection, IROAD V9 automatically detects and cuts off voltage when the voltage drops below certain point. Once initiated, recording is stopped and power is turned off. The motion detection function is effective for saving battery.

IROAD V9 Uninterrupted Fuse Cable is the basic component. You do not need to purchase it separately.

If you do not drive often or have very old battery which has to be replaced soon, please turn on the engine frequently to recharge the car battery before using 24 hour recording. This way will surely prevent the possibility of battery discharge. If the car is parked for long term, please disconnect the power jack to avoid natural discharge.

Able to control when to stop the recording,
automatic rebooting function

When you set a certain time for rebooting, video recording will be stopped for the time being and the camera will be rebooted.
Automatically checks the memory card error during reboot time and organize data storage.

Can be set via the IROAD application and the PC viewer.

voice guidance and
high quality voice recording

Have 34 kinds of voice guidance
You will hear such things as Start recording, event occurred, wifi connected etc. from the voice guidance that inform you each time something changes.
The high quality microphone is embedded in the device and it is useful as an evidence for an accident.

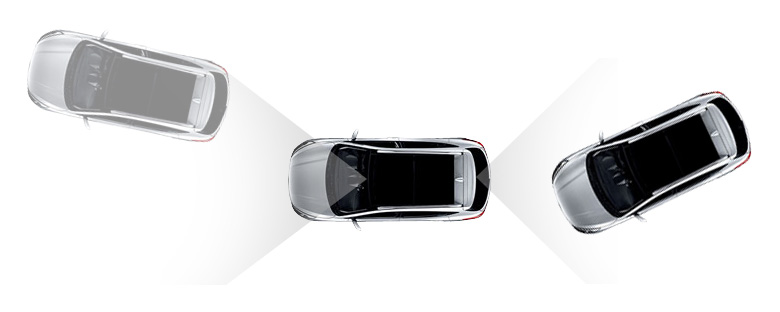

A Wide viewing angle

142 degrees optimal viewing angle, watch distortion-free images

IROAD V9 is 142-degrees angle wide, records the front and rear view of the vehicle in Full HD.

Provides optimal wide ratio to record left/right distortion-free footage and its wide viewing angle enables to record wider to the left and the right. More things will be recorded.

Recording on driving mode, Front/Daytime Full HD 1920x1080p 30fps

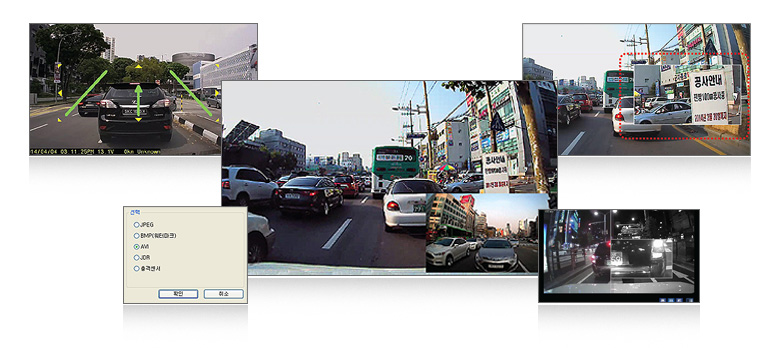

Dedicated PC Viewer for more focused monitoring

Front and Rear images playback (PIP/picture in picture function)

Image zoom in

Night recording calibration and Drawing a traffic lane

Converting recording files (Converting file format)

Various system configuration

Its installation file is included in a memory card provided.(automatic creation followed by rebooting).
Alternatively, download it from the official website.

The minimum
electricity consumption

The half of electric consumption is in lesser need than other products since it releases heat from electric circuit

2CH basis(12V, LCD OFF basis) : 2.3W

Accurate speed and
location information provided
External GPS

Synched with google map, External GPS keeps track of travelling speed and location of a moving vehicle and records the information.

External GPS is a separate (optional) item.

All glass lens,
strong durability

The lens of the camera used is covered with all glass and they endure low and high temperature and are not affected by them.

Optimal image is realized by ALL glass covered lens which endures both low and high temperature, instead of glass plus plastic combined one.

Strong temperature durable

IROAD V9 is highly durable enough to endure high and low temperature in order to keep the device running stably.

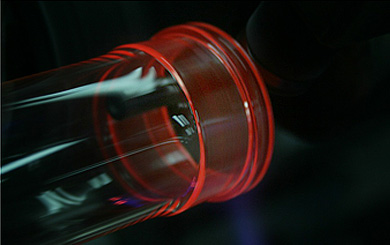

Safer with security LED light

LED enables us to check the device more easily as it doesn’t have screen. You will be able to tell if it is recording or when it is booting up.
Front security LED and rear security LED adds more luxury to your car by having blinking LED.

Especially, the LED can protect your car from getting damaged by other people as it will appear to them that the camera is in recording mode.

LED has been designed to face the interior of the vehicle.
Thus you will be able to check if your rear camera is operating by looking at the security LED from the inside of the car.

Security LED can be turn on-off in smart phone app and pc viewer.

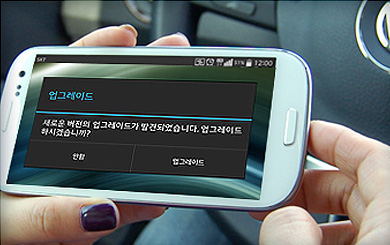

Smart auto upgrade

Automatic firmware upgrade is initiated via wifi. Think it as your smartphone. No more hassle from updating the cameras.

Firmware for the camera and updates for the viewer and the app are now done automatically. All it takes is an internet connection.

About the device

Specification

Resolution/Frame2CH – Front : Full HD 1920x1080p, 30Frame, 142 degrees / Rear : Full HD 1920x1080p, 30Frame, 142 degrees
CPUCortex-A7 MPCP V3
Image Sensor2CH – Front : SONY Exmor Image Sensor, Rear : SONY Exmor Image Sensor
ADASLDWS(Lane departure warning system), FCWS(Forward collusion warning system), FVDW(Front Vehicle Departure Warning)
Wi-FiWi-Fi supported – Dongle Type : Smartphone playback and settings, firmware auto-update
Constant power(low voltage cut-off)Cut-off and booting voltage settings(Constant power)
AudioSpeaker (effect sound for informing operational status and 34 kinds of voice guidance voice guidance supported), Microphone embedded
Video/Audio compressionH.264/ADPCM
Impact SensorAcceleration 3-axis Sensor (Recorded by an external impact)
GPSExternal GPS Antenna ((In conjunction with Google Maps to check the location and speed)
Storage medium Micro SD 4GB ~ 64GB (recommended type MLC Class10)
Recording modes Normal(driving)mode, Event(impact)mode, Parking(Motion Detection) mode, Voice recording
Power DC 12V~24V
Temperature, HumidityOperating Temperature : -30~-80, Storage Temperature : -30~-90, Humidity : 10~95%
PC viewerIROAD Wi-Fi Dedicated Viewer : Window XP, VISTA, Win7, Win8(32Bit~64Bit)
ApplicationIROAD App (Android 2.3 higher version, iOS 5.0 higher version)

Product Components
